A dust collector cartridge filter is a vital component in industrial air filtration systems. It traps fine particles, ensures clean air circulation, and protects workers and equipment. Whether used in metalworking, woodworking, or pharmaceuticals, cartridge filters improve workplace safety and compliance while extending the life of dust collection systems.
This guide explains their principles, selection criteria, maintenance, and long-term benefits.
What Is a Cartridge Filter for a Dust Collector?

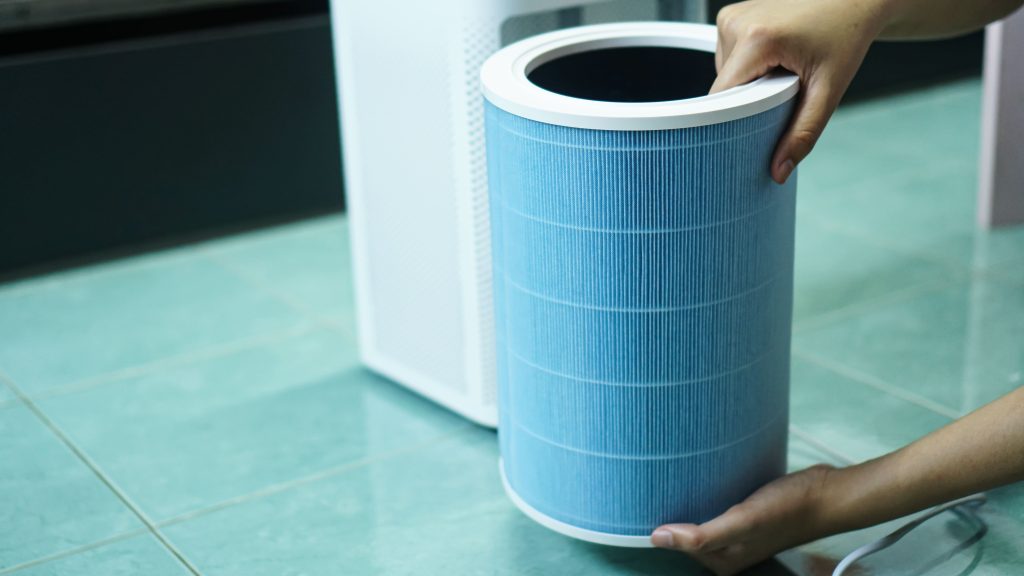

A cartridge filter is a cylindrical or oval-shaped filter element designed to capture fine dust particles. Unlike bag filters, cartridge filters have a pleated design that provides a larger filtration surface area in a compact space. This design makes them more efficient at handling submicron dust, ensuring better air quality and reducing system downtime. They are widely used in industries where airborne dust poses health and safety risks.
How Cartridge Filters Work
Cartridge filters function by pulling contaminated air through pleated filter media. The dust particles are trapped on the surface while clean air passes through. Over time, dust builds up, creating a pressure drop across the filter. To restore airflow, most systems use pulse-jet cleaning, which blasts compressed air through the filter to dislodge accumulated dust, allowing it to fall into the hopper for removal.
Key Benefits of Dust Collector Cartridge Filters
- High Efficiency – Captures fine dust, including particles smaller than 1 micron.
- Compact Design – Provides large surface area in limited space.
- Energy Savings – Lower pressure drop reduces fan power consumption.
- Improved Safety – Reduces combustible dust accumulation and enhances workplace safety.
- Longer Lifespan – Durable filter media with proper cleaning and maintenance extends service life.
Selecting the Right Cartridge Filter
Choosing the right cartridge filter for dust collectors depends on several factors:
- Dust Type and Characteristics – Fine powders, sticky dust, or abrasive particles may require specialized coatings or media.
- Filter Media – Options include cellulose, polyester, nanofiber, PTFE-coated, or blends for high efficiency and durability.
- Air-to-Cloth Ratio – The ratio of airflow (CFM) to filter surface area determines performance and energy use.
- Operating Environment – High humidity, oil mist, or high temperatures may require treated or reinforced filters.
- System Compatibility – Ensure filter dimensions and end-cap styles fit your collector model.
Understanding Pressure Drop
Pressure drop is the resistance to airflow as dust accumulates on the filter surface.
- Low Pressure Drop – Indicates efficient airflow and energy savings.
- High Pressure Drop – Suggests clogged filters or insufficient cleaning.
Monitoring pressure drop with gauges helps schedule cleaning cycles and determine when replacement is necessary.
Maintenance and Cleaning Practices
Proper maintenance maximizes filter performance:
- Routine Inspections – Check for visible damage, wear, or leaks.
- Pulse Cleaning Adjustment – Optimize cleaning frequency to avoid premature filter wear.
- Prevent Moisture and Oil Exposure – These can clog filters and reduce efficiency.
- Scheduled Replacement – Replace filters when cleaning no longer restores airflow or when pressure drop remains high.
When to Replace a Cartridge Filter
Replacement depends on dust type, operation hours, and filter quality. Common signs include:
- Consistently high pressure drop after cleaning
- Visible holes, tears, or media separation
- Reduced airflow and system efficiency
- Dust bypass in clean air chambers
Timely replacement prevents unplanned downtime and keeps the system compliant with OSHA and NFPA safety standards.
Cost Considerations and ROI
Although cartridge filters may cost more than standard filters, they deliver value through:
- Lower energy use due to efficient airflow
- Extended lifespan with proper maintenance
- Reduced downtime and labor costs
- Improved worker safety and regulatory compliance
This makes them a cost-effective investment for most industrial dust collection systems.
Conclusion
A dust collector cartridge filter plays a crucial role in industrial air quality management. By understanding its principles, monitoring pressure drop, selecting the right media, and following proper maintenance practices, companies can achieve higher efficiency, longer filter life, and safer workplaces. Investing in quality cartridge filters is not just about compliance—it is about protecting people, equipment, and productivity.
