What is the Kst value of dust, and why does it matter? This parameter is essential in evaluating the explosion severity of combustible dust. From food factories to metalworking and lithium battery production, knowing your dust’s Kst value is the starting point for designing explosion protection systems that actually work.
The Combustible Dust Explosion Hazard
Combustible dust explosions can cause catastrophic consequences if not properly managed. When fine dust becomes airborne in the presence of oxygen and an ignition source, it can ignite with devastating force.
To understand the risk, consider the Dust Explosion Pentagon:
- Combustible dust (fuel)
- Oxygen (air)
- Ignition source (e.g., spark, friction, hot surface)
- Dust dispersion (suspended in the air)
- Confinement (in an enclosure or vessel)
Even a small ignition can trigger a primary explosion, which often disturbs settled dust, leading to more powerful secondary explosions.
Why Dust Testing Is Essential
Not all dust is equally explosive. A dust explosion test helps identify the specific risk level by measuring parameters like:
| Parameter | Abbreviation | Definition |
|---|---|---|
| Minimum Explosible Concentration | MEC | Lowest dust cloud density that can explode. |
| Minimum Ignition Energy | MIE | Smallest spark energy that can ignite the dust cloud. |
| Minimum Ignition Temperature | MIT | Lowest surface temperature that causes ignition. |
| Maximum Explosion Pressure | Pmax | Highest pressure developed during a confined explosion. |
| Kst Value | Kst | Key index of dust explosion severity—rate of pressure rise. |
Relying on generic material assumptions is risky. Instead, test your site-specific dust samples in certified labs to determine the exact Kst value for dust explosion safety.
Kst Explosion Definition: What It Really Means
The Kst value—also known as the deflagration index—defines how rapidly pressure builds during a dust explosion. It is expressed in bar·m/s, and it helps safety engineers assess the violence of a dust explosion.
In short, the Kst explosion definition is:
If you’re asking "what is the Kst value of dust," it’s the single most important metric for determining how strong and fast a dust explosion will be under confined conditions.
How Is the Kst Value of Dust Measured?

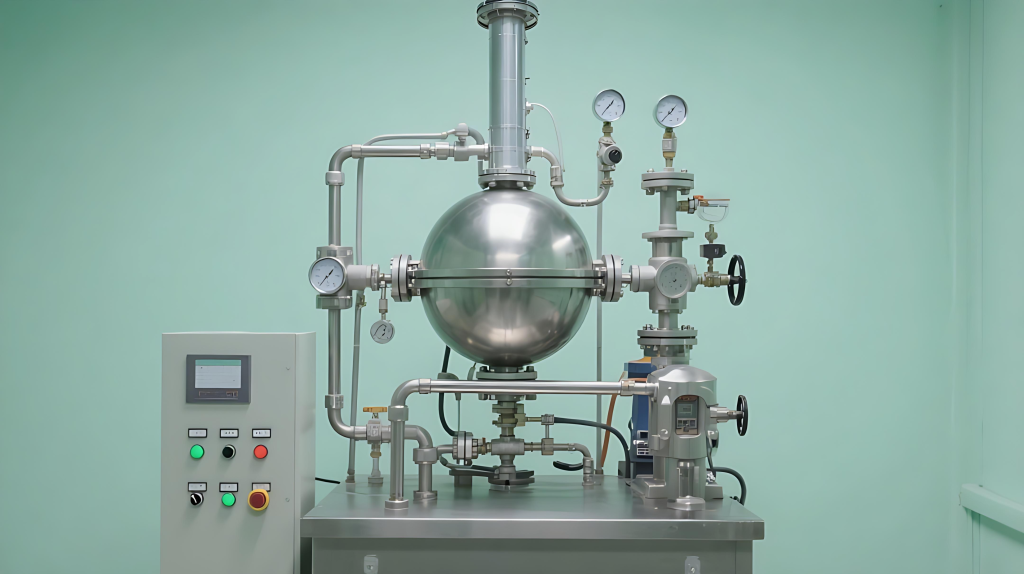

The Kst value of combustible dust is calculated through lab testing in either a 20-liter sphere or a 1-m³ test chamber. The procedure includes:
- Dust dispersion into the chamber
- Ignition using a controlled spark or heat source
- Sensors record the rate of pressure rise
Formula:
Kst = (dP/dt)max × V^(1/3)
Where:
- (dP/dt)max is the maximum rate of pressure rise (bar/s)
- V is the volume of the test chamber (m³)
This formula allows results from different labs to be compared on a standardized basis.
Kst Value Dust Explosion Classes (St Classes)
To interpret your results, use the following St classification table:
| Explosion Class | Kst Range (bar·m/s) | Severity | Examples | Protection Required |
|---|---|---|---|---|
| St 0 | 0 | Non-explosible | No risk | None |
| St 1 | 1–200 | Weak | Flour, charcoal, milk powder | Basic venting or suppression |
| St 2 | 201–300 | Strong | Grain dust, wood dust, PVC | Robust suppression & fast isolation |
| St 3 | >300 | Very strong | Aluminum, magnesium, organic pigments | Advanced protection, heavy-duty equipment |
Knowing your Kst value dust explosion class is critical for selecting the right explosion protection measures.
Why Kst Matters for Explosion Safety Design
The Kst value of dust plays a vital role in designing compliant and effective safety systems. It impacts:
- Explosion Vent Sizing
Higher Kst dusts need larger vents to safely release pressure. - Suppression System Design
Your suppression system must respond fast enough for your dust’s Kst rating. - Explosion Isolation Systems
Valves and barriers must match the Kst class of the dust to prevent propagation. - Equipment Strength
All vessels, collectors, and ducts must be built to withstand pressure based on Kst and Pmax. - Hazard Zone Classification
Electrical equipment in dusty areas must be certified for use in hazardous zones informed by Kst.
Supporting Parameters Beyond Kst
Although the Kst value of dust is central, other parameters help form a complete safety strategy:
| Parameter | Role |
|---|---|
| Pmax | Informs the pressure resistance needed in equipment design. |
| MEC | Helps define housekeeping and air filtration practices. |
| MIE | Supports static control and ignition prevention strategies. |
| MIT | Sets safe temperature limits for processing and machinery surfaces. |
Together with Kst, these factors define your full dust explosion risk profile.
How to Manage Combustible Dust Hazards
To protect your facility from combustible dust explosions:
- Identify whether your processes produce combustible dust.
- Test your dust in certified labs for Kst, Pmax, MEC, MIE, and MIT.
- Classify the Kst value of your dust to determine the St class.
- Design and install explosion protection based on your test results.
- Update risk assessments regularly as operations evolve.
Conclusion: Kst Combustible Dust Data Saves Lives
The Kst value is a vital indicator of combustible dust explosion severity, helping guide the design of effective safety measures. Proper dust collection systems play a key role in controlling dust concentration, reducing explosion risk, and protecting your facility.
By accurately identifying your dust’s Kst classification, you can choose the right dust collectors and explosion protection equipment tailored to your needs. Investing in quality dust collection is an essential step toward safer industrial operations and peace of mind.
